Cabin Building - Day 78-82 **Pictures**

Ok - so we finally got the camera to play nice with the computer so we could get these pics posted for you. Enjoy!!

Day 78 -- The Sheathing

First floor walls all sheathed - figuring out the loft sub-floor layout since we're a teeny-weensy bit out of square.
Looking in the "Front Door" on the west side - all the boxes are the stove, flue, & chimney assemblies. And another example of creative bush repurposing... a pretzel barrel for our 8d nails after the cardboard box exploded!
Looking in the "Front Door" - eventually we'll replace that ladder with an L-staircase. We did, finally, remove that lovely yellow ratchet strap once we got the subfloor down and everything stayed put - YAY!

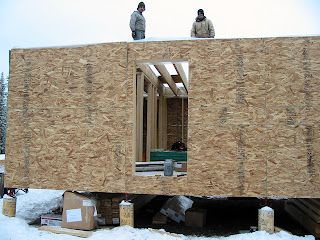

With the walls done, the guys start on the loft floor.
Half our load of insulation. It was snowing that day, which is why G's butt is all white LOL!
Ripley hated being left on the ground while we were all up on the loft deck. After climbing 10 feet up the ladder, she suddenly realized how high up she was and lost her nerve.
Just look at that face!  "Mommy, you sadistic human, put down the camera and help me!!"
View out the "back window" - sorry for the blur, I was shivering!
View out the "front window".

Day 81 -- The Rafters

Stood the first 4 rafters we built the day before.
Running out of space to build trusses on the deck, so we started stacking them against the ones we'd already lifted and braced.

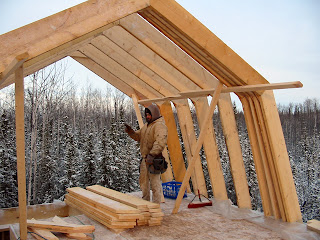

Ken counting rafters to make sure we had enough pieces cut -- ended up with two extra lower rafters OOPS! Note that Ken (6'1") can just squeeze under the pitch break. Our lower rafters are so steep so we only lost 16" of usable floor space in the loft.
There's the peak at 9'3" - or at least what it looks like from 5'6"  :)
Last one raised - and there's still some daylight left!!
Close up of our seat cut on the lower rafter (75°). The tail is angled to meet up with porch roof (15°) once it gets constructed.
Close up of the gambrel pitch break, where 75° lower rafter meets the 60° upper rafter. The angled joint is braced by a 4' gusset of 3/4" plywood, and a 4x11 tie plate bent over the rafter at the corners. This way, we avoided needing the support wall that you commonly find in gambrel roof construction.
Close up of the ridge braced by a 4' collar-tie/gusset from a 2x6, and 4x11 tie plate bent over the rafter at the corners. We'll come back later (after the sheathing) and add strapping over the outside of the ridge and pitch breaks to reinforce the bracing.
All up with the outside common rafters notched out for the 2x6 outriggers that will support the 2x6 barge rafters on the 2' overhang.
More pics out the "front window".
Sunset over the hills looking left out of the "front window".
And a very cool moonrise to end our day before climbing down off the roof.
The end of another snowy work day -- I'm hiding in the truck with the heater on because my hands were completely frozen!!
Day 81 - The Roof Deck

Here we are at lunch with the outriggers and barge rafters installed and the decking down on the east side. It was pretty windy that day, which made this job ever so much fun -- glad Ken was there to help because passing out the sheets and holding them in place definitely required 3 people on this steep a roof.
And finally, the decking down on the west side of the roof -- yes, the last 3 sheets went up by shop light because Ken is a crazy person!  :)
